SFT dataset & data-source configs

The SFT dataset is model-agnostic: one LeRobot v2.1 dataset in the JointController convention feeds any VLA. This page defines that schema and the three ways to produce it.

The shared schema (absolute joint)

Every SFT dataset — regardless of source — stores absolute joint state and actions:

state    (f32, 8)  [joint_0..6, gripper]          absolute joint config
actions  (f32, 8)  [joint_0..6_target, gripper]   absolute joint target + binary gripper
image_*  (video 256×256×3, 30 fps)                third-person overview(s) + wrist camera

• Absolute, not delta. actions are the next-step absolute joint targets an eval-time JointController can consume directly — no end-effector / IK.
• A model may re-encode these for training (e.g. openpi converts the arm joints to per-step deltas internally, then reconstructs to absolute at inference — see openpi SFT). That is a per-model config detail, not a property of the dataset.

Cameras: dataset ships many, policy uses two

The dataset carries several third-person overviews plus the wrist view. A typical 2-camera VLA (pi0.5 / Franka) consumes one overview + the wrist; extra overviews are dropped and any unused image slot is zeroed/masked. Which overview is used is a per-run choice that eval must read back from the checkpoint's train config to stay in distribution.

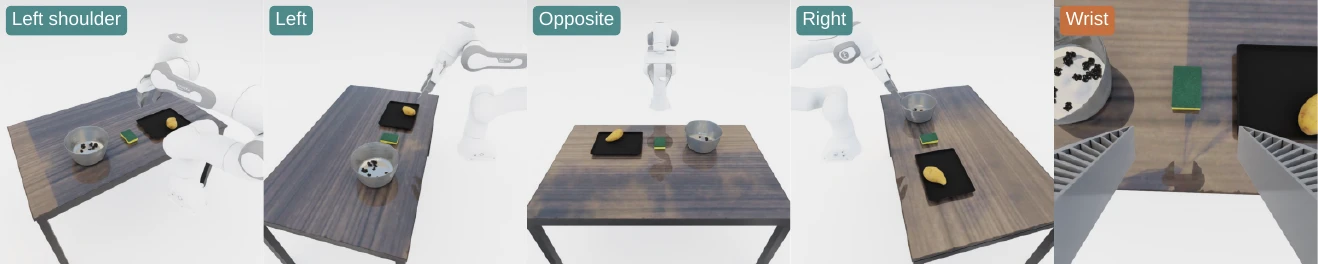

The five streams of a scripted-datagen episode — image_left_shoulder · image_left · image_opposite · image_right · wrist_image. A 2-cam policy trains on one overview (chosen via external_cam) plus the wrist.

source	overviews shipped	wrist
scripted datagen	4 (image_opposite/left/right/left_shoulder)	wrist_image
sim teleop	2 (image_left/right)	wrist_image
real teleop	1 external (exterior_image_1_left)	wrist_image_left

LeRobot v2.1 conventions (all sources)

• Datasets are LeRobot v2.1 (codebase_version v2.1). openpi pins a lerobot rev that expects v2.1; lerobot ≥ 0.4 writes v3.0 (different parquet layout).
• Conversion runs in a dedicated .venv-lerobot uv venv, pinned lerobot<0.4, separate from the behavior conda env:

  uv venv --python 3.11 .venv-lerobot
  uv pip install --python .venv-lerobot/bin/python 'lerobot<0.4' h5py pyarrow opencv-python


• The v2.1 git tag is mandatory on the HF repo — openpi's data loader pulls the dataset at that tag. Always push via LeRobot's push_to_hub(..., tag_version=True) (or --push-to-hub); plain huggingface_hub.upload_folder does not create the tag and will make openpi fail with RevisionNotFoundError.

---

Source 1 — Scripted datagen (primary)

The mature 6-family pipeline generates success+safe demos and converts them to LeRobot v2.1. This is the current main SFT data source.

outputs/datagen/<dataset>/<family>/task_*/traj_*   →   to_lerobot   →   datagen-<fam>-v1-joint-5cam

Full recipe: Scripted datagen (collection through RAW → LeRobot conversion). The datagen dataset ships all 4 bench overviews + wrist (5 streams); pick the overview per family via the policy config's external_cam.

Source 2 — Sim teleop

GELLO / SO-101 teleop demos, re-rendered to joint + 3-cam and exported to a multitask LeRobot dataset. Full recipe (Stage 1 render → Stage 2 export, the render_teleop_to_lerobot.sh template): Sim teleop → LeRobot.

Naming: <org>/sim-<fam>-30-joint-3cam (e.g. <org>/sim-dusty-transfer-30-joint-3cam).

Source 3 — Real teleop

Real Franka teleop capture (.npz) → LeRobot v2.1 in the DROID joint convention: 8-D state [joint_position(7), gripper] + 8-D action, joint-space throughout (consistent with the sim tracks), fps 15. Full recipe: Real-robot teleop → LeRobot.
